Newel Door Hinge

1/4

Quantity

The Hinge, Dressed Properly

Most hinges are designed to disappear. This one makes a case for being seen.

Oversized knuckles, stepped barrel detailing, and turned finials give an otherwise utilitarian piece the presence of traditional architectural hardware, while broad leaves keep the proportions substantial rather than ornamental.

Materials

3 mm Solid Brass
The hinge body, leaves, barrel, and decorative details are made from solid brass rather than plated base metal. Its density gives the hardware a reassuring weight in hand, while brass offers excellent corrosion resistance for long-term use.

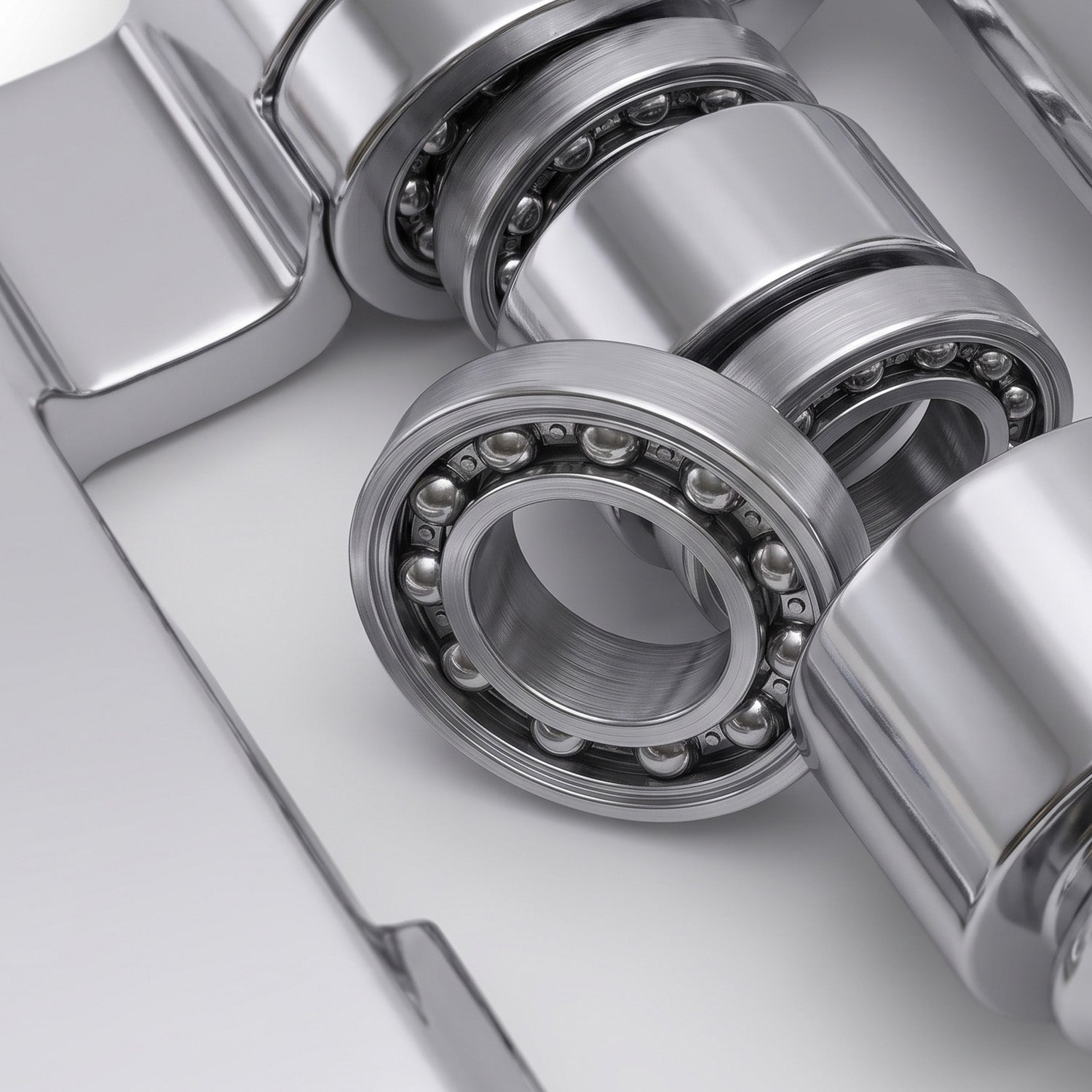

Steel Ball Bearings
Integrated steel ball bearings reduce friction inside the barrel, creating a smoother, quieter swing while limiting metal-on-metal wear over repeated use.

Design

• Decorative exposed-barrel construction
• Turned finials at top and bottom
• Broad, substantial hinge leaves
• Countersunk mounting holes

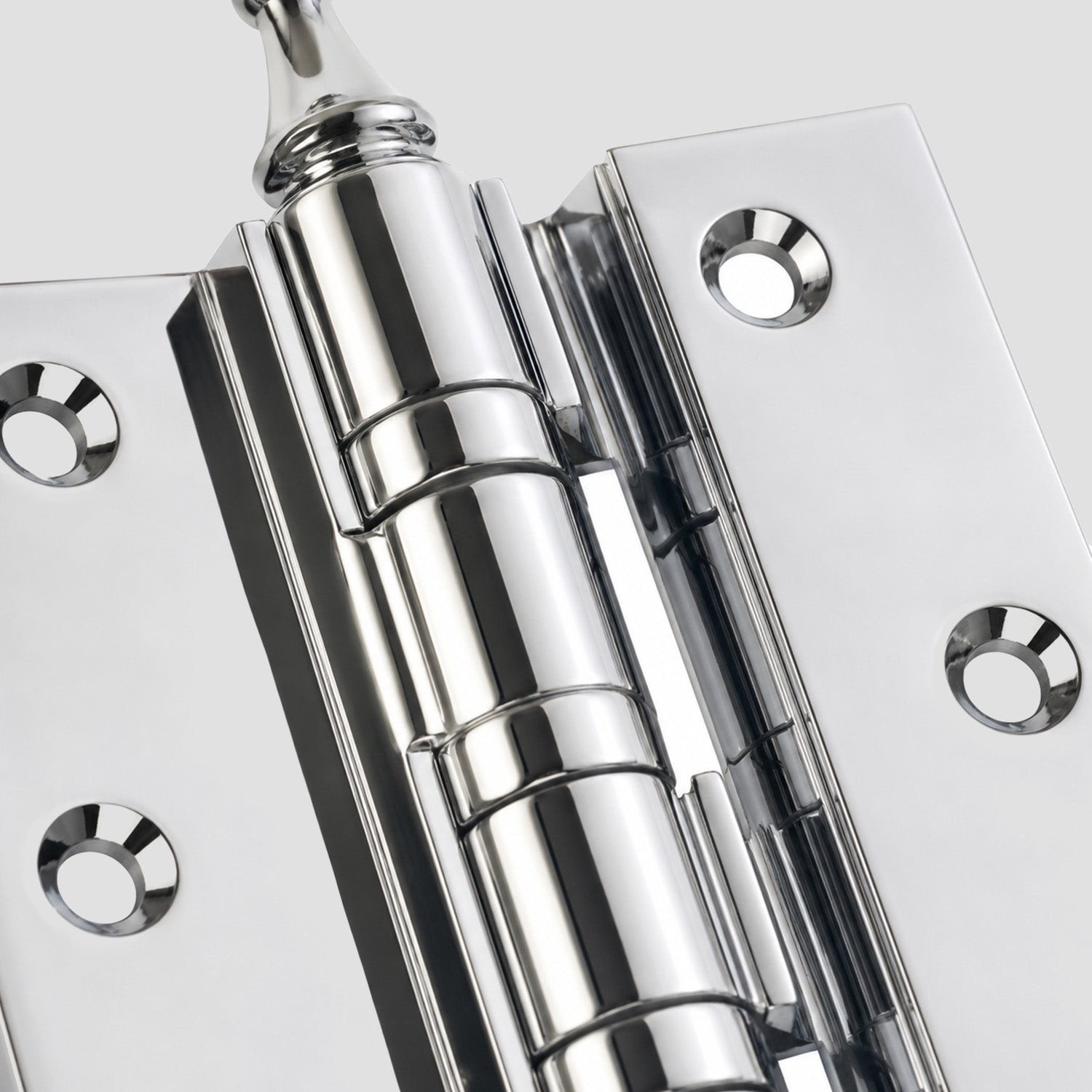

• Stepped detailing around each knuckle

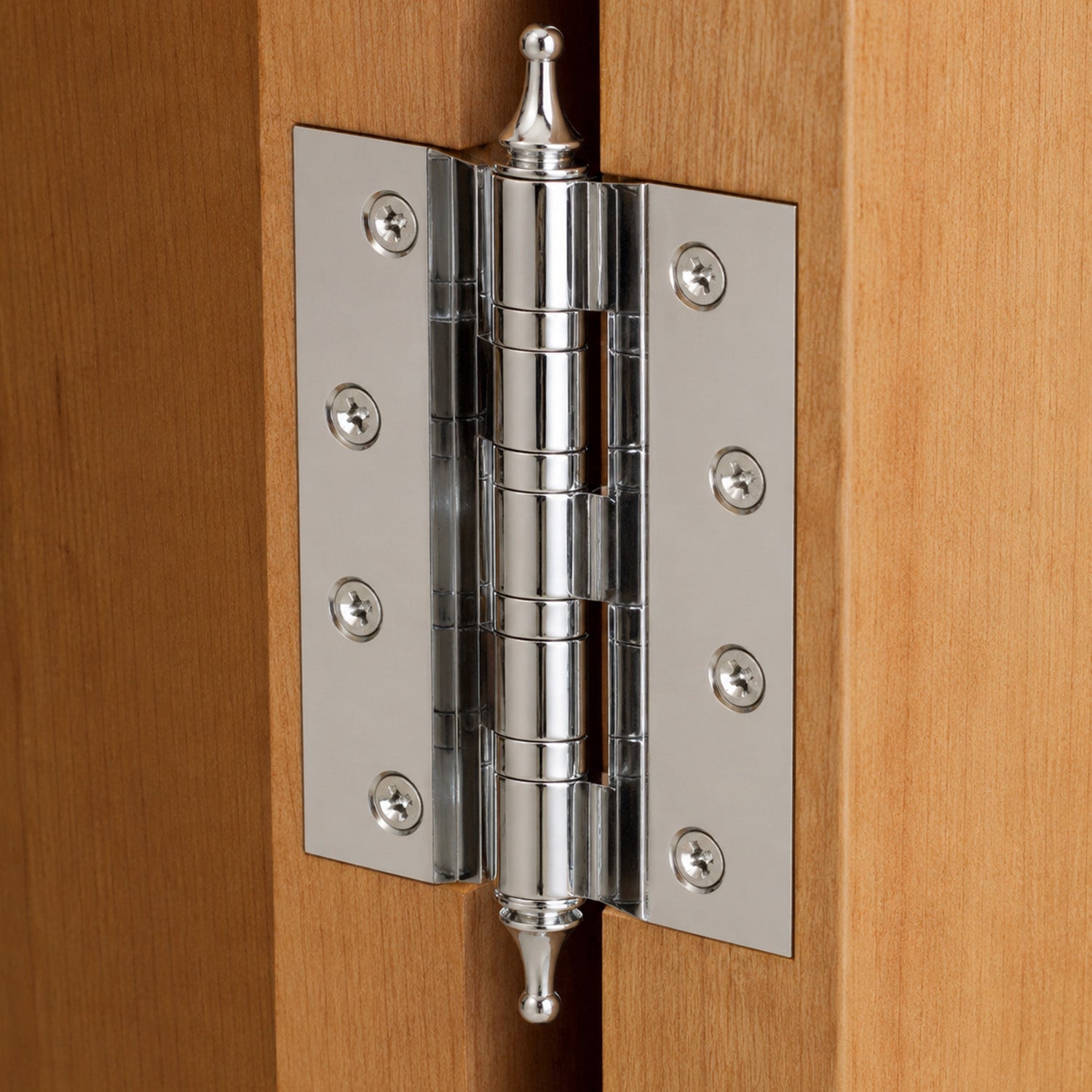

• Designed to remain visible when installed
• Suitable for statement interior doors

Dimensions

• Solid-brass hinge construction
• Steel ball-bearing mechanism
• Smooth, quiet door movement
• 14 mm articulated center barrel
• Countersunk mounting holes
• Decorative barrel rings and end caps

4-Inch
• Leaf length: 3.98 in (101 mm)
• Overall pin length: 4.02 in (102 mm)
• Overall width: 2.95 in (75 mm)
• Plate thickness: 0.12 in (3 mm)
• Barrel diameter: 0.55 in (14 mm)

5-Inch
• Leaf length: 5.00 in (127 mm)
• Overall pin length: 5.24 in (133 mm)
• Overall width: 2.95 in (75 mm)
• Plate thickness: 0.12 in (3 mm)
• Barrel diameter: 0.55 in (14 mm)

Arrives in 1-2 weeks
Free Shipping $49+
Easy Returns
100K Orders Shipped

Newel Door Hinge

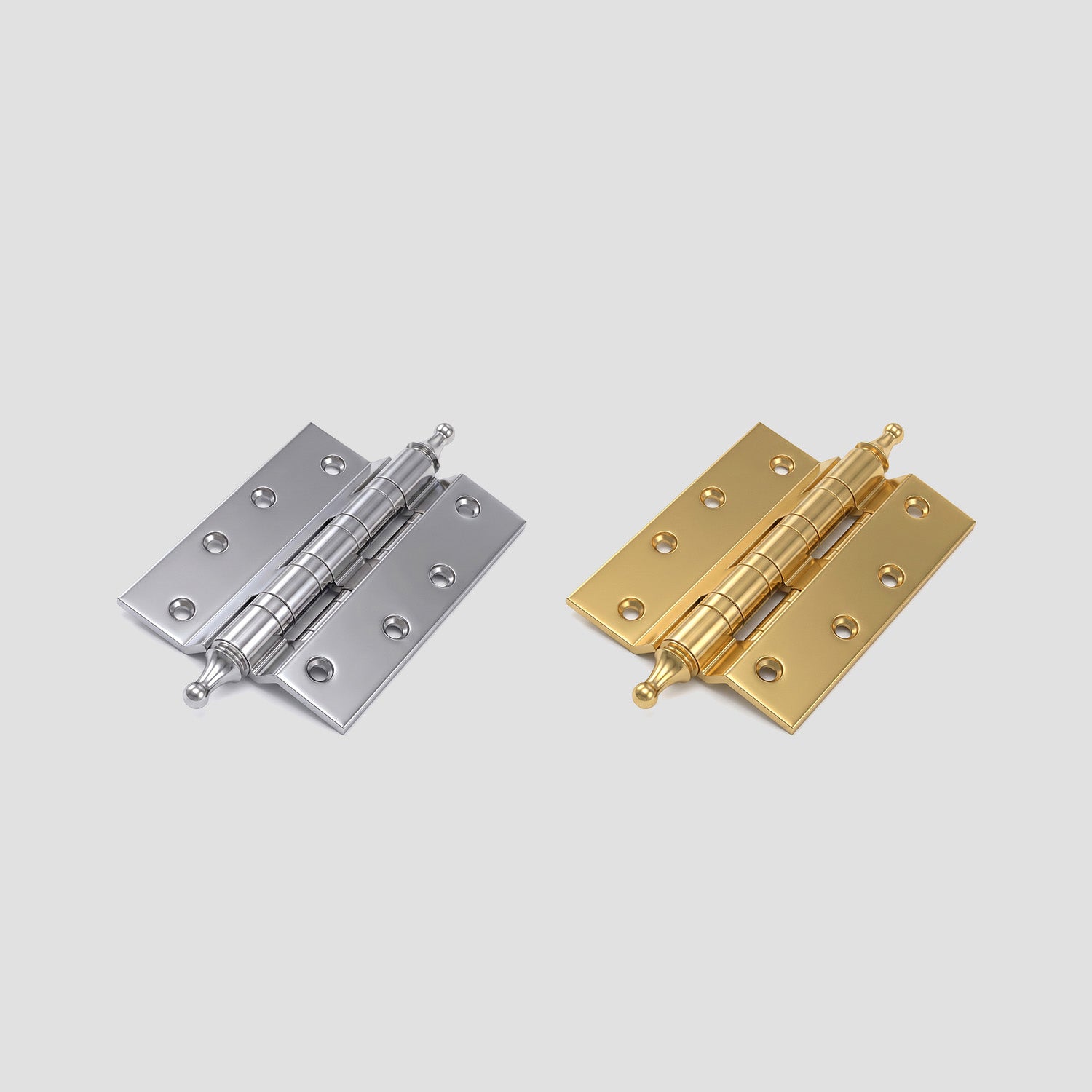

Finish: Brushed Nickel

Sold in: 1

Change

$17 USD

$17 USD ~~$0 USD~~

Sale Sold out

A Hinge Worth Looking At

Turned finials and an articulated barrel turn necessary hardware into part of the architecture.

Properly Proportioned

Wide leaves and a substantial center barrel give it the visual weight to hold its own on larger doors.

The Weight Is the Point

Thick brass leaves give the hardware a reassuring solidity that lightweight stamped hinges simply do not have.

Better Mechanics

Bearing-assisted movement keeps the barrel rotating cleanly rather than relying on brass rubbing directly against brass.

Questions About The Newel Door Hinge

How long until I receive my order?

The Newel Door Hinge arrives approximately 1-2 weeks from the day of order.

Our products take longer to arrive than most others on the internet. But there's a good reason why. Most of our pieces are made to order and ship directly from the source. We don’t keep warehouses or carry excess inventory. This is how we cut costs and pass thousands in savings back to you. But it also means you have to wait a bit longer.

What is your return policy

The Newel Door Hinge can be returned after receiving the order only if the product is damaged or unusable.

Our products are made to order. So we cannot offer returns for changes in preference. But we always do what we can to make it right.

To be returned, products need to be completely unused and still in their original packaging.

How can I track my order?

The Newel Door Hinge ships within 3-7 days of order placement.

Once your order has been shipped, you will receive an email with tracking details, allowing you to monitor its progress. Simply use the provided tracking information on our delivery partner’s website to stay updated on your shipment.

I have another question

Contact us anytime at care@theessential.com

Judge us by our looks

Our packaging is safe, simple, and proudly no frills. We don't think it makes sense to pay for things you throw away immediately.

That's why the Newel Door Hinge ships in the same protective packaging the manufacturer uses, covered in functional stickers and foreign stamps showing the journey it's been on.

We don't hide it and wear it as a badge of honor for the places our products have been and the people who made them.
